5.7 Inch Waterproof Portable Handheld Android PDA NFC Rugged Barcode Scanner

Overview

Basic Info.

Model NO.	Uniwa M512
Memory Capacity	≥1GB
Applications	Industrial Grade PDA
CPU Type	Octa Core
Internet Connection	GPRS
Classification	Bar-code Scanner
Bands	GSM/WCDMA/FDD-LTE
Rear Camera	13MP with Flashlight
NFC	13.56MHz, Support ISO14443A/15693 Protocols
Waterproof	IP65
Gnss	Support GPS/Bds/Glonass
GPU	Img Ge8320, 650MHz
Front Camera	5.0MP
Processor	Mt6762 Octa Core, up to 2.0GHz
Screen	5.7 Inch Corning IV Glass Ogs Capacitive Multi-Tou
Transport Package	Original Box with Bubble
Specification	155.3*75.2*14.75mm
Trademark	UNIWA
Origin	Cn
HS Code	8471301000
Production Capacity	50000 PCS/Year

Packaging & Delivery

Package Size 20.00cm * 20.00cm * 10.00cm Package Gross Weight 0.700kg

Product Description

Product Description

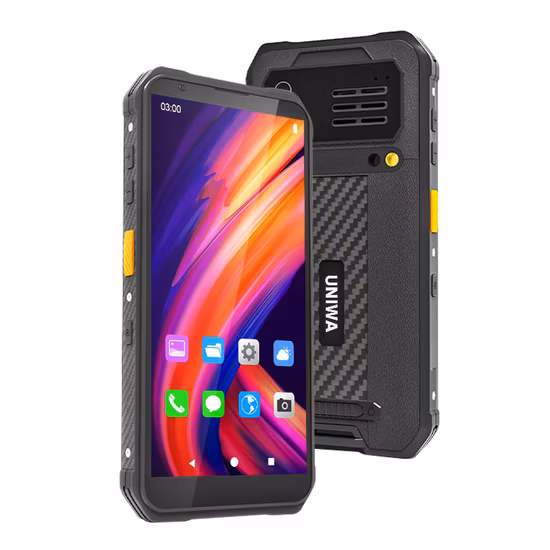

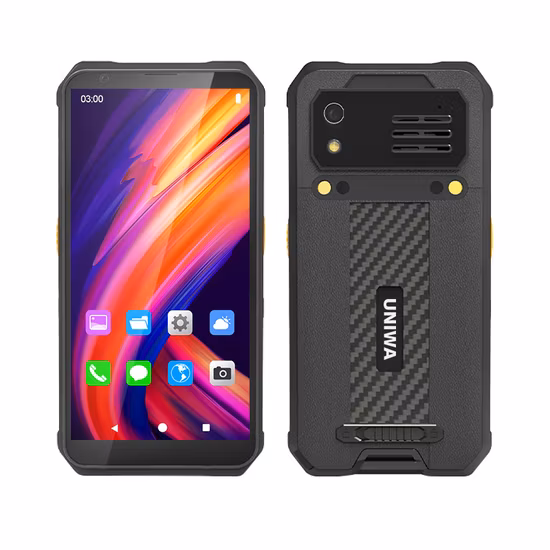

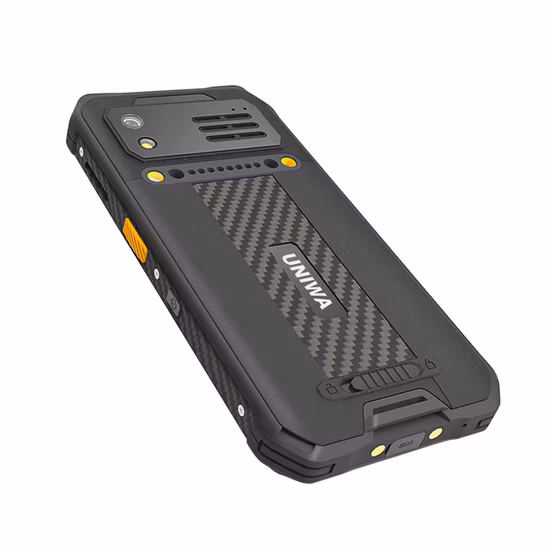

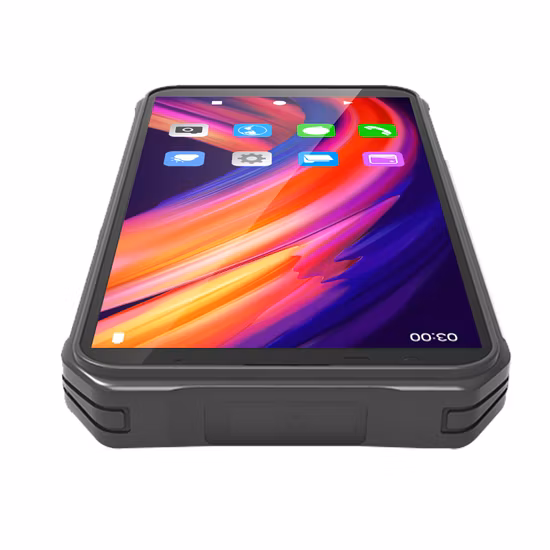

UNIWA M512 5.7 Inch NFC Mobile Waterproof Rug Android PDA Handheld Barcode Scanner

1) 5.7 Inch Gorilla Glass Touch Screen2) MT6762 Octa Core Processor3) Android 12 Operation System4) 4GB RAM+64GB ROM5) 5MP+13MP Double Cameras6) Removable 4100mAh Battery7) Support NFC8) IP65 Waterproof9) 2D Barcode Module Optional

Detailed Photos

Product Parameters

BASIC INFO
Model No.	UNIWA M512
Operating system	Android 12.0
Dimension	155.3*75.2*14.75mm
Weight	247g (including battery)
Material	Plastic
Color	Black
Languages	Multi-language
HARDWARE
Display	5.7 inch Corning IV glass OGS capacitive multi-touch screen, 1440*720px, 500 nits
Processor	MT6762 Octa core, up to 2.0GHz; GPU: IMG GE8320, 650MHz
RAM	4GB RAM
ROM	64GB ROM, support TF card up to 128GB maximally
Camera	Double cameras: 5.0MP front camera, 13MP rear camera with flashlight
Battery	Removable 3.8V/4100mAh Li-ion battery
Sensor	Acceleration sensor, magnetic sensor, light sensor, proximity sensor, E-compass
Speaker	2030 box speaker
Buttons	Scan button*2, Power button, Volume+/-, custom buttons*2, camera button
NETWORK & CONNECTIVITY
Bands	2G: GSM 850/900/1800/1900MHz
	3G: WCDMA 850/900/1900/2100MHz; TD-SCDMA B34/B39; EVDO: BC0
	4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20/B28A/B28B; TDD-LTE: B34/B38/B39/B40/B41
WiFi	IEEE 802.11ac/b/g/n, support 2.4GHz/5.0GHz dual-band WiFi
BT	V5.0
GNSS	Support GPS/BDS/GLONASS
NFC	13.56MHz, Support ISO14443A/15693 protocols
I/O INTERFACES
Nano SIM slot	*2 or 1 SIM+ 1 TF card
USB Type-C port	*1
OPTIONAL FUNCTION
Barcode Scanning	Optional: Honeywell N670x, Zebra 4100, Newland CM60
RELIABILITY
Waterproof	IP65
Temperature range	Operating: -10ºC~+50ºC Storage: -20ºC~+60ºC
ACCESSORIES
USB charger(5V/2A)	*1
USB cable	*1
User manual	*1
